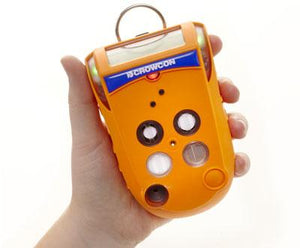

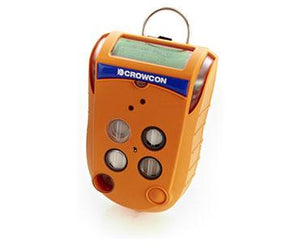

Gas Pro 4 Gas Monitor (Carbon Monoxide / Hydrogen Sulphide / Oxygen / Methane)

Crowcon

$850.00 Sale price

Regular price $850.00
Gas-Pro is a confined space entry monitoring solution for workers and fleet managers, and is now supported by the I-Test bump test and calibration station.

Overview

Offering detection of up to 5 gases in a compact and rugged solution, Gas-Pro has an easy-to-read top mount display combining ease of use and user focused features. An optional internal pump, activated with the flow plate, takes the pain out of pre-entry testing and allows Gas-Pro to be worn either in pumped or diffusion modes.

User Friendly

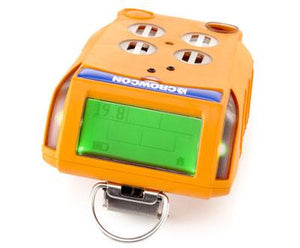

  • Top mount display – makes it easy to read at a glance
  • Simple single button operation – reduces training time
  • Intuitive functionality – can be used whilst wearing gloves

Adaptable

  • Monitor 5 gases from many different options – detect gases such as Hydrogen Sulphide, Carbon Monoxide and Oxygen Depletion while offering multiple uses within one compact detector
  • Pumped and diffusion solutions
  • Multiple languages
  • Automatic fail-safe flow plate recognition – takes away the pain of pre-entry testing
  • Specific and unique Pre-Entry Check (PEC) mode

Reliable

  • Reliable lithium-ion battery – provides over 14 hr use from a 7.5 hr charge
  • Water and dust resistant to IP65 and IP67 – capable of withstanding harsh environments
  • Bump and calibration reminders – Full compliance

Specifications

Size 43 x 130 x 84mm (1.7 x 5.1 x 3.3ins)
Weight 309g 4 gas (10.8oz)/ 340g pumped (11.9oz)333g 5 gas (11.7oz)/ 362g pumped (12.7oz)
Alarms Audible >95dB @ 30cm (98dB @30cm in loud mode)
Visual – all angle dual red/blue LEDs
Vibrating alert
Display Top mount for ease of view with dual colour backlight (green/red)
Data logging 125hr at 10-second intervals (45,000 logs)
Event logging Alarm, over range, calibration, bump, on/off, TWA, 1000 events
Battery Rechargeable Li-ion, >14hr (13 hours pumped operation) based on CH4, O2, H2S, CO
Typical charge time 7.5hr
Sampling Internal pump as option
Operating temperature -20°C to +55°C (-4°F to +131°F)
Storage -25°C to +65°C (-13°F to +149°F)
Humidity 10 to 95% RH+
Ingress protection Independently tested to IP65 and IP67
Approvals IECEx: Ex db ia IIC T4 Gb Tamb -20°C to +55°C
ATEX: II 2 G Ex db ia IIC T4 Gb Tamb -20°C to +55°C
UL: Class 1, Division 1, Groups A, B, C, and D UL 913, UL 60079-0 and UL 60079-11
INMETRO: Ex db ia IIC T4 Gb Tamb -20°C to +55°C
Marine Equipment Directive: MED 1500009
Compliance FCC and CE. Complies with EMC Directive 2014/30/EU, EN50270 and EMC FFC CFR 47 Part 15, ICES-003
Interface Data connection for gas test solutions and direct to PC
Charging Direct connection to multi-regional power supply
Vehicle charger adaptor
Desktop cradle
USB power and communications lead
Crowcon Connect Compatible? Yes

Gases and Ranges

Gas Range Typical Alarms Resolution
Ammonia (NH3)  0-100ppm  25ppm  1ppm
Carbon dioxide (CO2)  0-5% vol.  0-5% vol.  0.01% vol.
Carbon monoxide (CO)  0-2000ppm  30ppm  1ppm
Carbon monoxide (CO)  0-500ppm  30ppm  1ppm
Carbon monoxide
(hydrogen filtered)
 0-2000ppm  30ppm  1ppm
Chlorine (Cl2)  0 – 5ppm  0.5ppm  0.1ppm
Dual toxic (CO-H2S) H2S 0-100ppm
CO 0-500ppm
 5ppm
30ppm
 1ppm
1ppm
Flammable  0-100% LEL  20% LEL  1% LEL
Hydrogen sulphide (H2S)  0-100ppm  5ppm  1ppm
Nitrogen dioxide (NO2)  0-20ppm  1ppm  0.5ppm
Oxygen (O2)  0-25% vol.  19.5% / 23.5% vol.  0.1% vol.
Ozone (O3)  0-1ppm  0.1ppm  0.01ppm
Sulphur dioxide (SO2)  0-20ppm  1ppm  0.1ppm
Chlorine dioxide (ClO2)  0-1ppm  0.1ppm  0.1ppm
Nitric oxide (NO)  0-100ppm  25ppm  1ppm
